Article #57:  NPSH and Developed Head

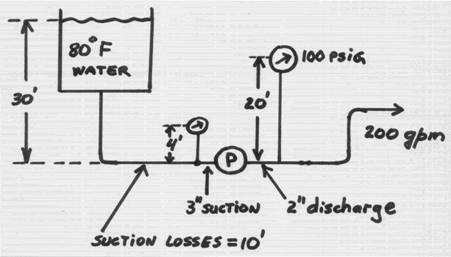

A typical pump system is shown on a sketch below. A centrifugal pump delivers 200 gpm of water from an open tank. Using information on the sketch, answer the following questions:



* What is the available NPSH?

* What pressure does a suction gage read?

* What differential head this centrifugal pump is producing? What differential pressure is it generating?





Those who e-mail us the correct answers will be acknowledged in the solution section of this problem in the next issue of PUMPS MAGAZINE.
